NonLinLoc

NonLinLoc 定位包装插件

描述

通过 SeisComP3 插件机制，NonLinLoc（NLL）](http://alomax.free.fr/nlloc) 定位算法已实现。新的locnll插件包含LocatorInterface的实现。

错误量度

运行 NonLinLoc 之后，输出将被转换成 SC3 初动对象，包括所有有效错误量度。 下表显示 NLL 错误量度如何映射至 SC3 数据模型：

SC3 NLL
Origin.latitude.uncertainty sqrt(phypo->cov.yy)
Origin.longitude.uncertainty sqrt(phypo->cov.xx)
Origin.depth.uncertainty sqrt(phypo->cov.zz)
Origin.originQuality.standardError phypo->rms
Origin.originQuality.secondaryAzimuthalGap phypo->gap_secondary
Origin.originQuality.usedStationCount phypo->usedStationCount
Origin.originQuality.associatedStationCount phypo->associatedStationCount
Origin.originQuality.associatedPhaseCount phypo->associatedPhaseCount
Origin.originQuality.usedPhaseCount phypo->nreadings
Origin.originQuality.depthPhaseCount phypo->depthPhaseCount
Origin.originQuality.minimumDistance km2deg(phypo->minimumDistance)
Origin.originQuality.maximumDistance km2deg(phypo->maximumDistance)
Origin.originQuality.medianDistance km2deg(phypo->medianDistance)
Origin.originQuality.groundTruthLevel phypo->groundTruthLevel
Origin.originUncertainty.horizontalUncertainty phypo->ellipse.len2
Origin.originUncertainty.minHorizontalUncertainty phypo->ellipse.len1
Origin.originUncertainty.maxHorizontalUncertainty phypo->ellipse.len2
Origin.originUncertainty.azimuthMaxHorizontalUncertainty phypo->ellipse.az1 + 90
ConfidenceEllipsoid.semiMajorAxisLength phypo->ellipsoid.len3
ConfidenceEllipsoid.semiMinorAxisLength phypo->ellipsoid.len1
ConfidenceEllipsoid.semiIntermediateAxisLength phypo->ellipsoid.len2
ConfidenceEllipsoid.majorAxisPlunge (phypo->ellipsoid.axis1 x phypo->ellipsoid.axis2).dip
ConfidenceEllipsoid.majorAxisAzimuth (phypo->ellipsoid.axis1 x phypo->ellipsoid.axis2).az
ConfidenceEllipsoid.majorAxisRotation T.B.D.

插件

NonLinLoc 插件安装于share/plugins/locnll.so。 添加插件至模块，只需将其添加至modulename.cfg或global.cfg配置文件：

plugins = ${plugins}, locnll

基本上可用于两个模块： screloc 和 scolv。

输出

所有输出存入NonLinLoc.outputPath，文件前缀为originID，包括以下文件：

  • 输入观测（.obs）
  • 输入配置（.conf）
  • NLL 定位（.loc.hyp）
  • NLL 3D 网格头（.loc.hdr）
  • NLL 八叉树 （.loc.octree）
  • NLL 散布文见（.loc.scat）

示例

添加插件至 scolv 或 screloc，在配置文件中插件列表中添加：

plugins = ${plugins}, locnll

增加插件配置：

########################################################
################ NonLinLoc configuration################
########################################################
NLLROOT = ${HOME}/nll/data

NonLinLoc.outputPath = ${NLLROOT}/output/

# Define the default control file if no profile specific
# control file is defined.
NonLinLoc.controlFile = ${NLLROOT}/NLL.default.conf

# Set the default pick error in seconds passed to NonLinLoc
# if no SC3 pick uncertainty is available.
NonLinLoc.defaultPickError = 0.1

# Define the available NonLinLoc location profiles. The order
# implicitly defines the priority for overlapping regions
#NonLinLoc.profiles = swiss_3d, swiss_1d, global
NonLinLoc.profiles = swiss_3d, global

# The earthModelID is copied to earthModelID attribute of the
# resulting origin
NonLinLoc.profile.swiss_1d.earthModelID = "swiss regional 1D"

# Specify the velocity model table path as used by NonLinLoc
NonLinLoc.profile.swiss_1d.tablePath = ${NLLROOT}/time_1d_regio/regio

# Specify the region valid for this profile
NonLinLoc.profile.swiss_1d.region = 41.2, 3.8, 50.1, 16.8

# The NonLinLoc default control file to use for this profile
NonLinLoc.profile.swiss_1d.controlFile = ${NLLROOT}/NLL.swiss_1d.conf

# Configure the swiss_3d profile
NonLinLoc.profile.swiss_3d.earthModelID = "swiss regional 3D"
NonLinLoc.profile.swiss_3d.tablePath = ${NLLROOT}/time_3d/ch
NonLinLoc.profile.swiss_3d.region = 45.15, 5.7, 48.3, 11.0
NonLinLoc.profile.swiss_3d.controlFile = ${NLLROOT}/NLL.swiss_3d.conf

# And the global profile
NonLinLoc.profile.global.earthModelID = iaspei91
NonLinLoc.profile.global.tablePath = ${NLLROOT}/iasp91/iasp91
NonLinLoc.profile.global.controlFile = ${NLLROOT}/NLL.global.conf

用法

定位器

插件载入成功后，新的定位器出现在左下角复合框中：

定位器选择框

选择 NonLinLoc 定位器，将载入配置属性：

定位器属性选择

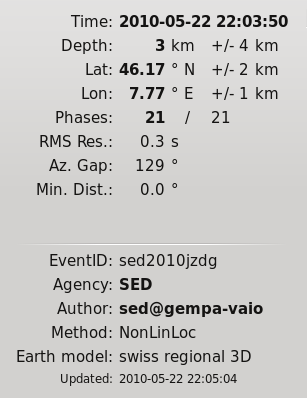

如果初动已被重定位，方法将被设为NonLinLoc且地球模型包含属性的名称。

初动信息

设置

NLL 定位器支持会话级配置设置或控制参数的重载。 按定位器选择组合框右边的按钮，打开设置对话框：

定位器设置

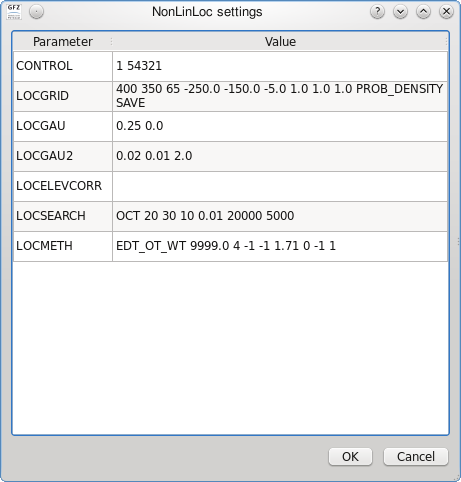

显示 NLL 参数：

NLL 参数设置

地震观测

scolv 提供两个附加配置按钮，一个为Seismicity Viewer:

button0 = "Seismicity Viewer"
scripts.script0 = @CONFIGDIR@/scripts/sv

脚本sv将被Seismicity Viewer调用：

#!/bin/sh
FILE=$HOME/nll/data/output/$1.loc.hyp
java -classpath $HOME/nll/bin/SeismicityViewer50.jar \
     net.alomax.seismicity.Seismicity $FILE

Seismicity Viewer已安装于$HOME/nll/bin。
